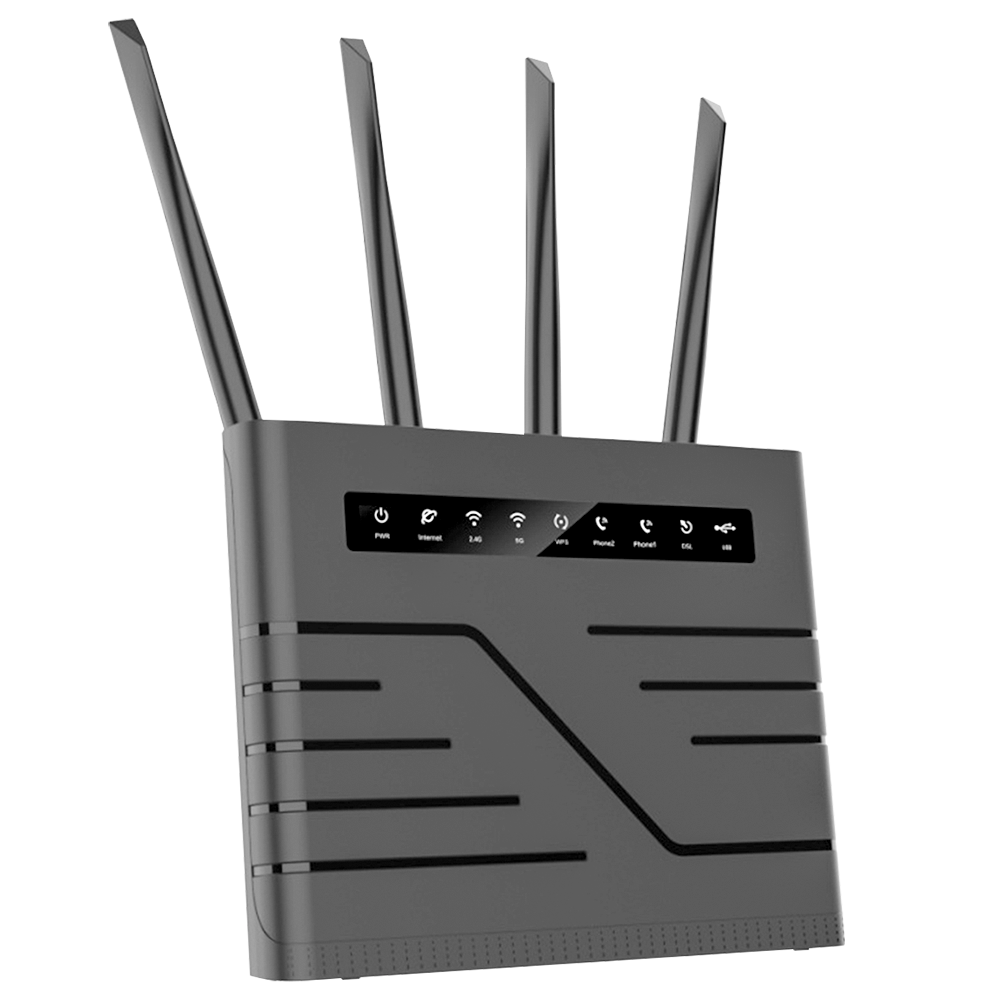

Visonicom VDL1205 Wireless AC1200 VDSL2 modem VoIP Router 4-port Gigabit Ethernet IAD is a versatile, high-speed remote router for home and the small office. Users can embrace the great convenience and efficiency not only for Internet browsing, P2P applications, on-line gaming but also for IPTV service, VoIP service, sharing of printers and USB storage devices etc., either through wired or wireless connectivity. Meanwhile, VDL1205provides physical Gigabit Ethernet WAN port and FXS port for VoIP.
Visonicom VDL1205 enables your PC and electronic devices to access the local wireless network with high data rate up to 1200Mbps and it is compatible with 802.11n and 802.11ac standards.
Specifications & Features:
| Hardware | ||
| Key Components/Connectors/Performance | ||
| Network Processor | VSPM340 | |
| Wireless Chipset | MT7603E/TR5120 (11n 2x2 2.4GHz) | |
| MT7612E/TR5120 (11ac 2x2 5GHz) | ||
| Flash Memory | 128M bytes | |
| RAM | 128M bytes | |
| VoIP | FXS*2 | |

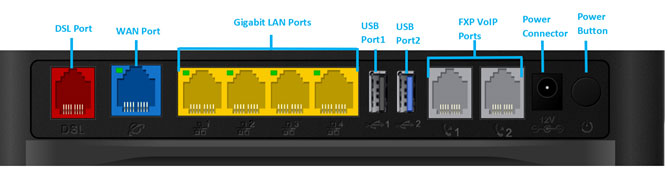

| Interfaces (TR-068 Compliant) | ||
| LAN | 4x 10/100/1000Base-TX MDI/MDIX RJ-45 ports Compliant with Following Standards: | |
| 1. IEEE 802.3/802.3u/802.3ab | ||
| 2. Hardware Based 10/100/1000, Full/half, Flow Control Auto Negotiation | ||
| 3. Non-blocking Wire Speed Reception and Transmission | ||
| 4. Full Duplex IEEE 802.3x Flow Control and Half Duplex Back-pressure Flow Control | ||
| 5. Broadcast Storm Protection | ||
| 6. Automatic Address Learning, Address Aging and Address Migration | ||
| 7. Integrated Address Look-Up Engine, 1 K Absolute MAC Addresses Supported | ||
| 8. IEEE 802.3az Compliant | ||
| USB | Support USB2.0 & USB3.0 | |
| 1. Power Level: 1.5A(USB2.0 0.5A+USB3.0 1A) | ||
| 2. USB Port Supports USB Mass Storage Device for Any External Flash Disk. | ||
| 3. USB Support 3G/LTE Dongle. | ||
| WAN | 1*RJ-11 for VDSL port | |
| 1*GE WAN Port RJ-45 10/100/1000Mbps, Auto MDIX | ||
| WLAN | 2*Detachable 2.4G External 5dbi Antenna by Default | |
| 2*Detachable 5G External 5dbi Antenna by Default | ||
| Wireless On/off Switch | ||
| IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Compliant | ||
| Standard Compliance: 802.11 a/b/g/n/ac | ||
| Modulation: | ||
| 802.11ac: BPSK, QPSK, 16QAM, 64QAM, Up to 256QAM with OFDM. | ||
| 802.11n: OFDM, BPSK, QPSK, 16QAM, 64QAM | ||
| 802.11g: PSK/CCK, DBPSK, DQPSK, OFDM, BPSK, QPSK, 16QAM, 64QAM | ||
| 802.11b: CCK(11&5.5 Mbps), DQPSK (2Mbps), DBPSK (1Mbps), DSSS | ||
| Operating Frequencies: 2.4GHz band: 2400 ~ 2483.5MHz | ||
| 5GHz for 11ac: 5150MHz ~ 5250MHz, 5250MHz ~ 5350MHz, 5750MHz ~ 5875MHz | ||
| Channel Numbers: 802.11b/g/n: 11 for North America; 13 for Europe; 14 for Japan | ||
| Voice | 2x FXS RJ-11 Ports | |
| Software | ||
| Feature Item | Feature | Detailed Description |
| ATM & PTM/PPP | Multiple Protocol Encapsulation over AAL5 | RFC 2684 |
| Bridged and Routed Ethernet Encapsulation | ||
| Logical Link Control (LLC) Encapsulation | ||
| VC-based Multiplexing | ||
| MAC Encapsulated Routing | RFC 1483 MER | |
| ATM Forum UNI3.1/4.0 PVC | Up to 8 PVCs | |
| ATM Cell Format ITU-T Rec. I.361 | ||
| ATM Adaptation Layer Type 5 (AAL5) | ||
| ITU-T I.610 OAM Principles & Functions | Including F4/F5 loopback | |
| PPP over ATM | RFC 2364 | |
| PPP over Ethernet | RFC 2516 | |
| PPP Link Control Protocol (LCP) | RFC 1661 | |
| Internet Protocol Control Protocol (IPCP) | RFC 1332 | |
| PPP Authentication Protocol (PAP) | RFC 1334 | |
| PPP Challenge Handshake Authentication Protocol (CHAP) | RFC 1994 | |
| Microsoft PPP CHAP Extensions | RFC 2433 | |
| Multiple PPPoE Sessions over Single PVC | ||
| Multiple Services, i.e. PPPoE, Bridge, and MER, over Single PVC | ||
| PTM Traffic Shaper/scheduler | ||
| Network and Features | WAN: Interface: ATM/PTM/Ethernet/3G; DHCP/Static/PPPoE/PPPoA/Bridge | |
| Port Mapping | ||
| Network Address Translation (NAT); at least 3000 NAT sessions | RFC 1631 | |
| IP Static Routing | ||
| Routing Information Protocol (RIP, RIPv2) | RFC 1723 | |
| Virtual Server, Port Forwarding | ||
| Port Triggering | ||
| NAT ALGs: FTP, SIP, H323, RTSP (Real Player etc.), … | ||
| Dynamic Host Configuration Protocol (DHCP); DHCP Server, Client, and Relay | RFC 2131 | |
| DNS Relay, DDNS | ||
| IGMP Proxy | v.1/v.2/v.3 | |
| IGMP Snooping (32 Multicast Groups) | ||
| Simple Network Time Protocol (SNTP) | ||
| IPv6: | ||
| RFC Conformance for IPv6 Phase-II Logo | IPv6 and IPv4 Dual Stack | |
| RFC 2460: Base Specification for IPv6 | ||
| RFC 4861: Neighbor Discovery Specification for IPv6 | ||
| RFC 4862: IPv6 Stateless Address Auto-Configuration Specification | ||
| RFC 1981: Path MTU Discovery for IPv6 | ||
| RFC 4443: ICMP for IPv6 | ||
| RFCs (Supported per Request) | ||
| RFC 4291: IPv6 Addressing Architecture Support | ||
| RFC 3315: DHCP for IPv6 | ||
| RFC 2472: IPv6 over PPP | ||
| RFC 2462: Address Prefix Advertisement & Duplicate Address Detection | ||
| RFC 3633: IPv6 Prefix Option for DHCPv6 | ||
| RFC 3646: Acquiring DNS Config info from DHCP Server | ||
| RFC 4890: Filtering ICMP v6 Message | ||
| RFC 5095: Internet Protocol, Version 6 (IPv6) Specification | ||
| RFC 3587: IPv6 Address Types-Unicast | ||
| RFC 4193: Unique IPv6 Local Address | ||
| RFC 1981: IPv6 MTU Path Discovery | ||
| RFC 2461: Neighbor Discovery for IP Version 6 (IPv6) | ||
| 3.Dual Stack (Supported per Request) | ||
| IPv6 Tunnel | Support Ds-Lite and Dual IPv4 & IPv6 | |
| Firewall | Built-in NAT Firewall | |
| MAC Filtering | ||
| Packet Filtering | IP/ICMP/TCP/UDP | |
| URL Content Filtering (keyword Filtering) | Parent Control | |
| Domain Blocking | ||
| Stateful Packet Inspection (SPI) | ||
| Denial of Service Prevention (DoS) | ||
| Intrusion Detection System/Log | ||
| DMZ | ||
| VoIP | SIP Endpoints Manipulation (internal calls, local voice features-CF, CT, CW) | |
| Codecs: | ||
| G711u Law, G.711a Law, G.722, G729 a/b | ||
| Outbound Proxy | ||
| Call rules, Speed Dial, Call block, Country Code Select, Logs | ||
| Multi-profile, 2 FXS lines. | ||
| G.168 Echo Canceler | ||
| Fax: | ||
| G711 Pass Through, T.38 | ||
| USB 3.0 Host Features | 3G/4G LTE USB Modem Backup/failover | Need to Provide Dongle to RD for Porting |
| USB Storage Device File Sharing | Samba | |
| VPN | Multiple IPSec/PPTP/L2TP Pass-through | Supports Up to 8 IPSec VPN Tunnels; For One L2TP Server, only One Client Session is Allowed |
| QoS | ATM QoS | CBR, rt-VBR, nrt-VBR, UBR |
| Traffic Classification/Prioritization: Port-based Priority | ||
| 802.1p (0~7) vLAN tag | ||
| Diffserv-Codepoint in TOS field (0~63) Application Port-based Priority | ||
| User-defined Priority (TCP/UDP/ICMP etc.) | ||
| Queuing/Scheduling: | ||
| Round Robin; Weighted Round Robin(WRR); Strict Priority(SP) etc. | ||
| 3 priority Queues per PVC | ||
| Rate Limiting (Shaping): | ||
| Bandwidth Control (64K/128K/256K/512K/1M/10M/Unlimited…) | ||
| Wireless | 2.4G: 11b/11g/11n (20/40 MHz) | |
| 5G: 11ac/11an/11a (20/40/80 MHz) | ||
| 64/128-bit WEP Engine | WEP Weak Key Avoidance | |
| Multiple SSID (Up to 4) | ||
| MAC Address ACL | ||
| AES-CCM/CCMP engine | ||
| WPA-PSK | TKIP/AES | |
| WPA2 Personal-PSK | AES Block Cipher | |
| WPA2 Mixed Mode-PSK | TKIP-AES Encryption | |
| 802.1 * RADIUS | ||
| EAP Encapsulation over LANs w/ RADIUS Client | ||
| 802.11e WLAN QoS | WMM/WME | |
| WPS Function | ||
| Maintain | Web-based GUI Configuration: W3C-compliant browsers Supported | Firefox 1.5+, IE 6.0+, Safari 1.3+ |
| 3-level Login Control for Local/Remote Management | ||
| TFTP for Firmware, Configuration Files and Image Files Upgrade and Download | Default Off from LAN (Support upon request) | |
| TFTP Server and Client | Currently TFTP Client Supported | |
| Code Lock to Prevent from Improper Firmware Upgrade through UI, TFTP, and TR-069 etc. | Lock by F/W Prefix, by Model, by Chipset Solution, by Chipset Generation etc. | |
| Local Access via Internal Console Pin (optional) | Menu Driven User Interface & Command Line Interface | |
| UPnP IGD 1.0 | ||
| VDSL2/ADSL2/ADSL2+ Manual Selection and Auto Fallback | Multi-mode by Default | |
| Auto VPI/VCI Detection (optional) | Not TR-062, TR-037 Compliant | |
| Configuration Backup and Restore | ||
| Diagnostics | ||
| Log & Trace Function | Default On | |
| TR-069 compliant w/ ACS | (Supported upon Request) | |
| Customization | Support Dual Images | to be Supported |
| Support for Different languages in GUI | ||
| syslog (Call History, Firewall and SIP Messages Included) | ||
| Traffic Mirroring (real-time traffic on ETH port) | ||
| IPerf | ||
| Physical & Environmental | ||
| Power Supply | AC-DC Switching Power Adapter (Level-V) Input: 100-240VAC, 50/60Hz, Output: 12VDC, 2A | |
| Power Switch | Support | |

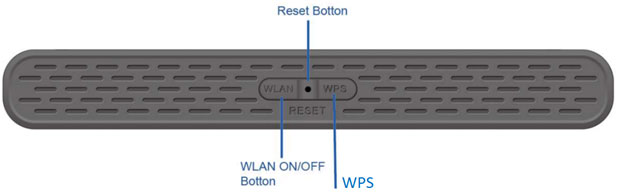

| Reset Button | Reset Factory Default by Pushing Button and Holding for 5 Seconds. | Reset Factory Default, not “Reboot only”. |
| Operation Temperature | 32℉ to 104℉ (0℃ to 40℃) | |
| Storage Temperature | -4℉ to 164℉ (-20℃ to 80℃) | |
| Humidity | 5% ~ 85% Non-conde | |
